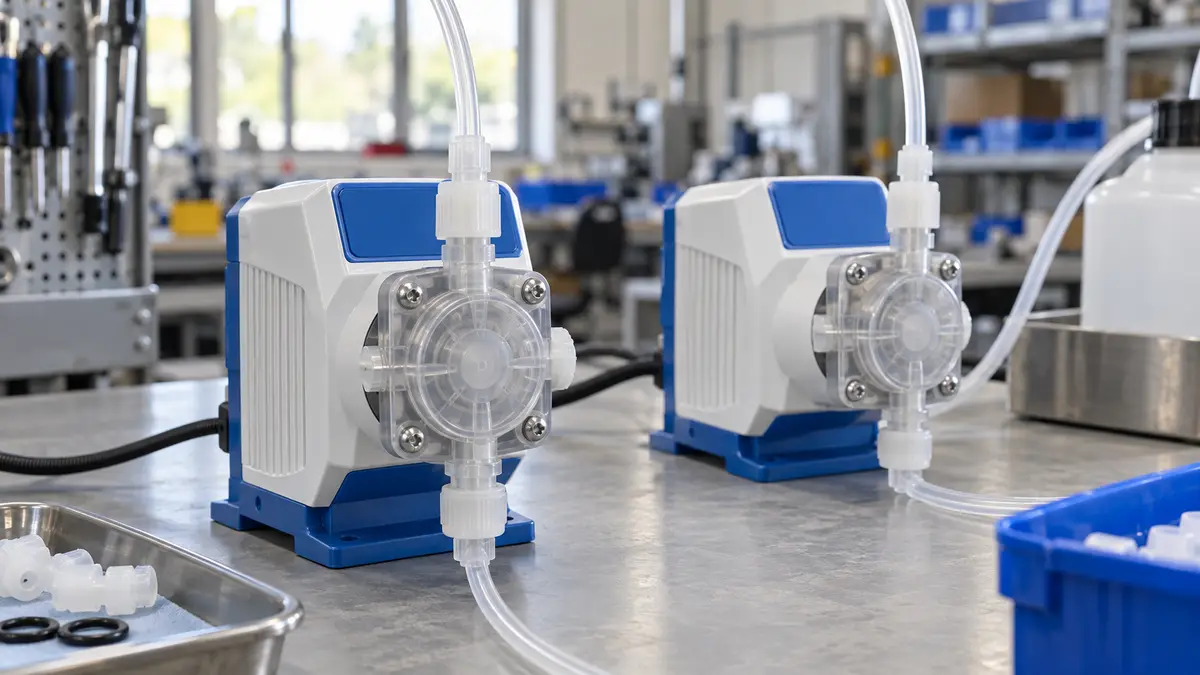

Sourcing solenoid metering pumps from China

Duty and the pump classification

Heading 8413 covers pumps for liquids and liquid elevators. For a solenoid-driven diaphragm pump that meters a chemical by reciprocating movement, start by checking 8413 50 40 90, the dosing and proportioning pump line. The table also shows neighbouring descriptions and pump parts; these are classification checks, not interchangeable codes.

Read from the UK Trade Tariff on 8 October 2026, the selected lines carried 0% duty for goods from China. The supplied facts record no anti-dumping or countervailing duty, tariff suspension or attached import control on these lines. Zero duty does not remove machinery safety obligations.

Confirm the commodity code using the pumping mechanism, dosing function and any measuring device. A dosing adjustment does not by itself establish that the pump has a measuring device. For wider pump comparisons, see peristaltic dosing pumps. For concrete applications, see our guide to sourcing concrete pumps from China.

Specify dosing against backpressure

State the chemical, concentration, temperature, viscosity and suction arrangement. Specify the required delivery at working backpressure, the adjustment range and the agreed dosing tolerance. Ask for the wetted-material list covering the head, diaphragm, valve balls, seats, seals and tubing, rather than accepting a general claim of chemical resistance.

Define manual adjustment, external pulse control, analogue control and low-level alarm behaviour as applicable. Agree the supply, connections, priming method and supplied injection and foot valves. Test the proposed configuration before approving production.

For new machinery placed on the Great Britain market, CE or UKCA marking, a declaration of conformity and English instructions are required. Match the supplied documents to the delivered pump configuration; use testing and certification support when reviewing the evidence.

Worked duty example

Illustrative example, not a quote: Illustrative order: 40 solenoid diaphragm metering pumps under 8413 50 40 90, invoiced at £4,000 free on board, with £150 of freight and insurance to the UK. The customs value is £4,150. Duty at 0% is £0. Import VAT at 20% is charged on the customs value plus duty, £4,150, so it is £830. With no duty, the only import tax is the VAT, which a VAT-registered importer can usually reclaim. The import duty and VAT guide explains each step.

Inspection checklist

Delivery: measure collected liquid over an agreed interval at working backpressure and across the agreed settings; record the test liquid and suction conditions.

Wetted parts: compare the head, diaphragm, valve components and seals with the approved material list; check replacement parts fit.

Priming and leakage: test restart after loss of prime, inspect head joints and connections, and check for unintended flow when stopped.

Controls and documents: test the ordered inputs and alarms, inspect cable entries and the nameplate, and match the declaration and English instructions to the pump.

What goes wrong

A pump can deliver the advertised flow into an open container yet underdose against the installed backpressure. Air trapped in the head, leaking suction connections and sticking valve balls can interrupt delivery. Test with the intended installation conditions rather than relying on an unloaded demonstration.

Material substitutions can cause swollen seals or damaged diaphragms. Incorrect valve orientation, mismatched tubing and unclear control settings can also prevent reliable dosing. Keep the approved sample and material list available for quality inspection, and agree compatible diaphragm and valve spares.
